Hi everyone!

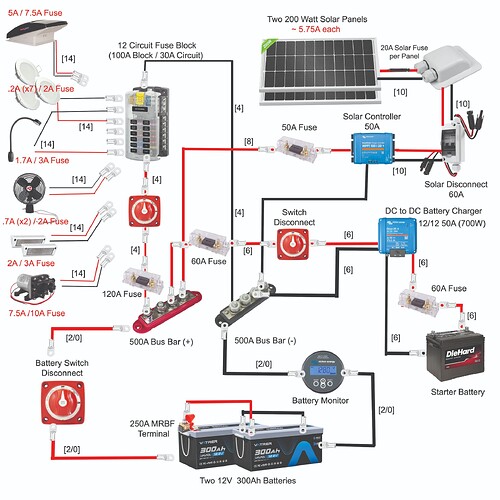

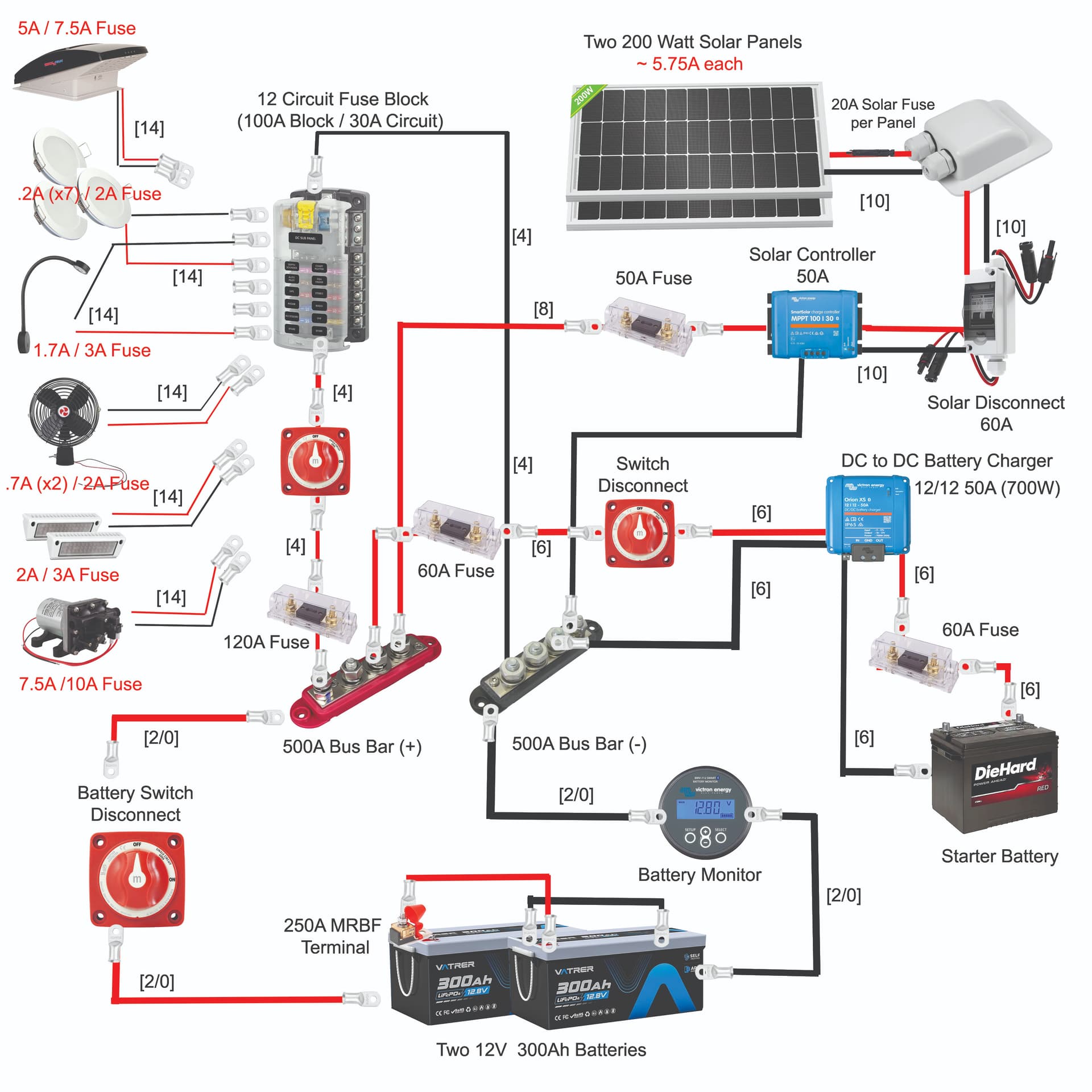

This will be my first build. I made an electrical diagram and I am hoping to get feedback as I am very new to all this.
Just a few notes about the diagram:
- The diagram is just the DC side for now
- I will be adding additional 12v devices to the diagram (Fridge, possibly an Air Condition, etc)
- I believe the wire size is a little overkill for what I am currently planning but I would like to have the ability to upgrade easily in the future
- Does anyone see anything that would cause any problems? I want to try to avoid anything that can cause a short or other electrical problems.
Any and all feedback welcome!
Thank you all!
